Connectors

This chapter provides all necessary information of the peripheral’s connections, switches and indicators. Always turn the system off and disconnect power you install the peripherals.

List of Connectors

BAT1: Li 3V battery holder

CA3: Line-out/Line-in/Mic-in/SPDIF-out 2x5 pin (2.0mm) Wafer

CALR1: Amplifier Line-out Right/Left channel 4pin (1.25mm) wafer

CC1: COM1 DB9 Connector

CC2: COM 2x5pin (2.0mm) wafer

CBT1: Li 3V Battery 1x2pin (1.25mm) Wafer

CA3: Line-out/Line-in/Mic-in 2x5 pin (2.0mm) Wafer

CALR1: Amplifier 1x4 pin (1.25mm) Wafer

CC1: COM 2x5pin (2.0mm) wafer

CC2: COM 2x5pin (2.0mm) wafer

CFP1: Front Panel connector 2x5pin (2.0mm) wafer

CIO1: DIO 2x5pin (2.0mm) Wafer

CL1: LAN port 1 RJ45 Connector

CL2: LAN port 2 RJ45 Connector

CL11: LAN port 1 RJ45 2x4pin (2.0mm) wafer(option)

CL21: LAN port 2 RJ45 2x4pin (2.0mm) wafer(option)

CO1: I2C Bus 1x4pin (1.25mm) Wafer

CPI1: DC 12V-IN 1x4pin (2.0mm) Red wafer connector

CPO1: +12V/+5V power output 1x4pin (2.0mm) Black wafer connector

CU12: Dual USB3.0 Type A connector

CU3: USB2.0 Type A connector

CU4: USB3.0 Type A connector

CU5: USB 2.0 port 1x4pin (1.25mm) Wafer

CU6: USB 2.0 port 1x4pin (1.25mm) Wafer

CU7: USB 2.0 port 1x4pin (1.25mm) Wafer

LVDS1: LVDS 2x15pin (1.25mm) connector

CPP1: BKL power 1x5pin (2.0mm) Wafer

CT1: TOUCH 2x5pin (2.0mm) Wafer

SATA1: One SATA connector 7pin

MPCE1: Full size mini card port 1 sockets 52pin

MPCE2: Full size mini card port 2 sockets 52pin

HDMI1: HDMI connector

HDMI2: Display Port connector

EIO1: eIO port 2x20pin (1.27mm) Wafer

This chapter provides all necessary information of the peripheral’s connections, switches and indicators. Always power off the board before you install the peripherals.

DC Power In

Pin	Description
0 (left)	9 – 36V+
1,2 (middle)	External Power Switch
3 (right)	Ground

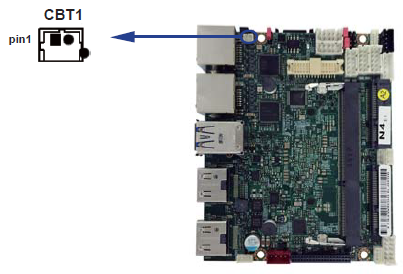

CMOS Battery holder

CBT1: 3V Battery hold 2pin CBT1: Battery use Li 3V / 40mAh (CR1220)

Note: Power consumption w/o connected Power Adapter: 2.7uA Power consumption with connected Power Adapter: 0.1uA

COM Ports

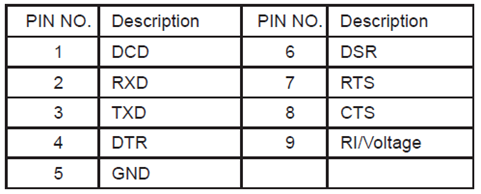

RS232 mode:

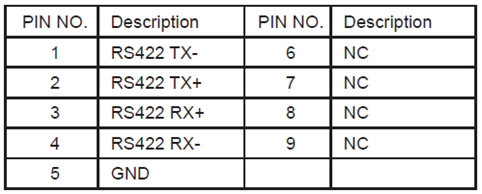

RS422 mode:

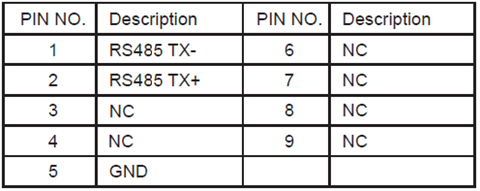

RS485 mode:

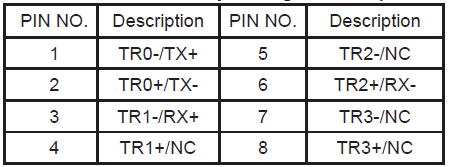

LAN Ports

USB Ports

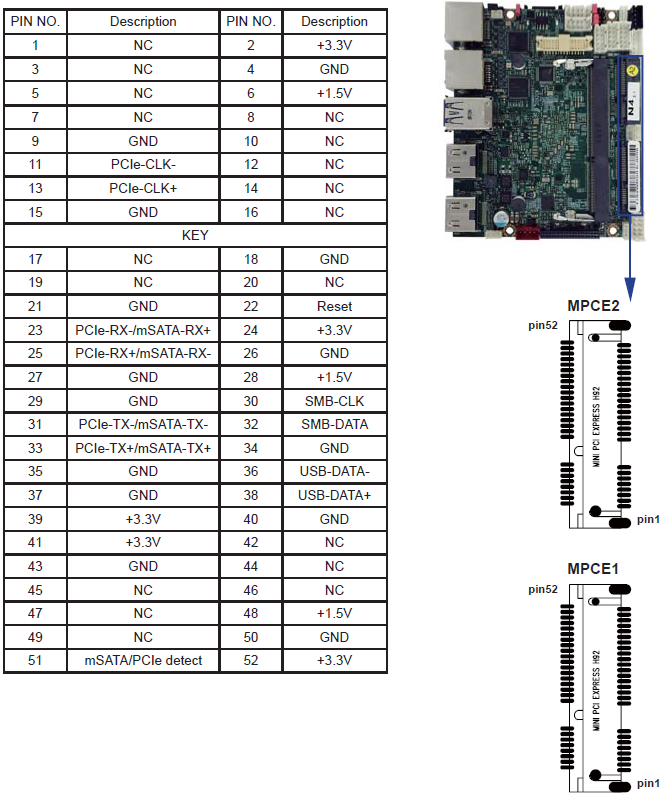

mPCIe MiniExpressCard

The Arrakis MK3 offers a total of 2 on Board mPCIe Connectors and 2 mPCIe Connectors on the optional SIM/4G Card carrier module.

1. Fullsize mPCIe: usually unavailable and occupied by mSATA SSD

2. Fullsize mPCIE: supports USB, mSATA & PCIe connections

3. Two Fullsize mPCIE: only installed on demand, or with 4G Modem pre-installed. Usually one is occupied with 4G Modem, only USB devices are supported.
